Flexible Packaging Materials for Custom Pouches and Bags
Choose the right flexible packaging material structure based on your product requirements, filling method, barrier needs and sustainability goals.
ScintrixPackaging provides custom material solutions for food, coffee, pet food, supplements and other flexible packaging applications.
Choose the Right Packaging Material Structure
Material selection dictates performance on the shelf and the production line. We evaluate four critical dimensions before recommending a laminated structure.
Product Compatibility
Chemical interactions between the product and interior sealant layer must be analyzed. From aggressive spice oils and roasted coffee beans to fine supplement powders and acidic pet foods, the inner PE or CPP layer is calibrated to prevent delamination and ensure food safety compliance.
Barrier Requirements
Determine exact Moisture Vapor Transmission Rate (MVTR) and Oxygen Transmission Rate (OTR) parameters. We select materials—such as AL foil for absolute light/oxygen block or VMPET for moderate protection—based on the specific shelf-life target of your retail environment.
Filling Method
Material stiffness and slip coefficients must match your packing process. Whether you are manually loading pre-made pouches or running automated form-fill-seal (FFS) equipment, we adjust the film structure to prevent machine jams and ensure rapid, secure heat sealing.
Sustainability Goals
Transitioning to eco-friendly packaging requires balancing barrier needs with recyclability. We offer mono-material PE structures designed for store drop-off recycling programs, providing a pragmatic path toward sustainability without compromising structural integrity.

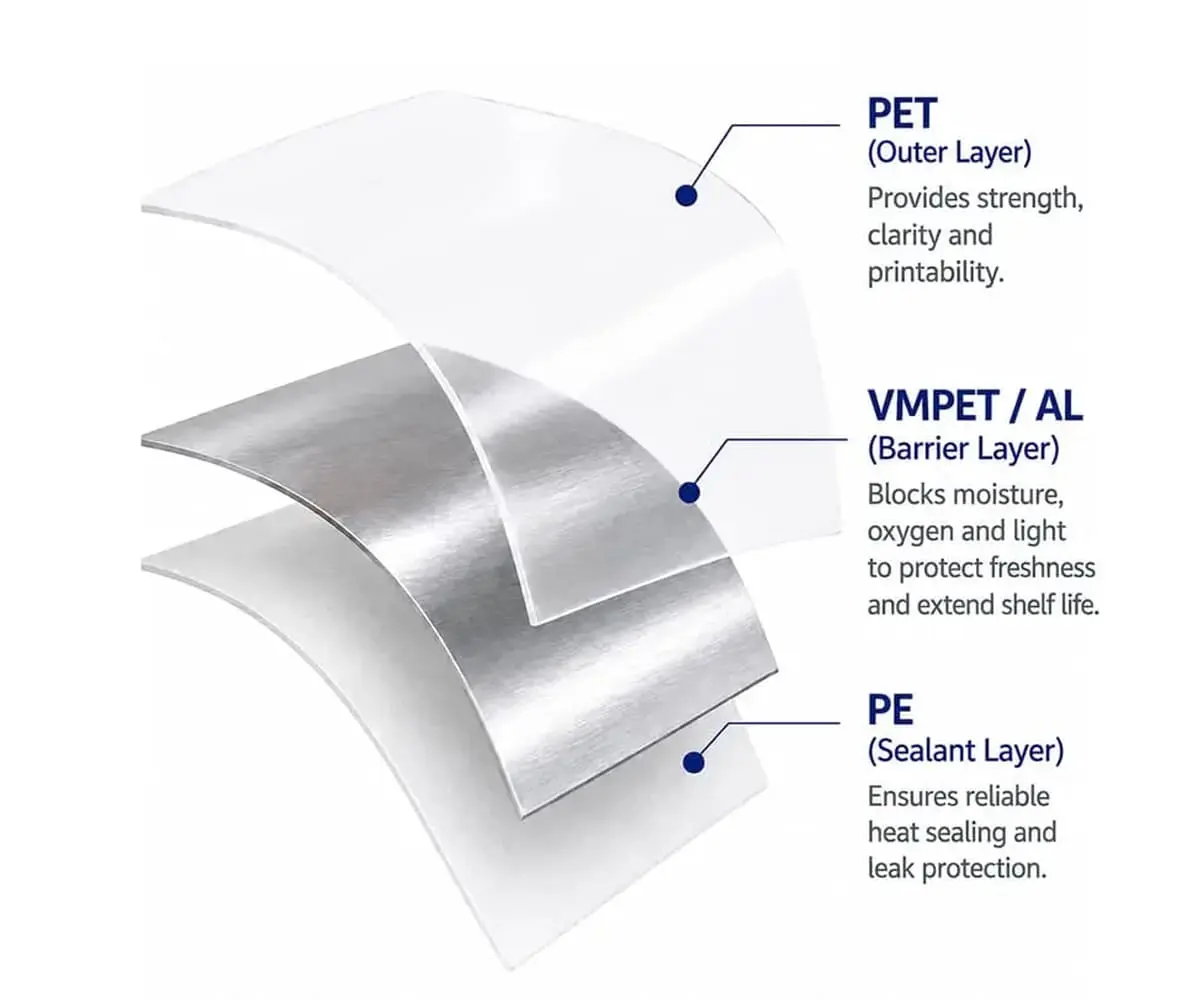

Common Flexible Packaging Material Structures
Below are the primary lamination configurations we manufacture. Each structure is engineered to solve specific storage, transport, and display challenges.

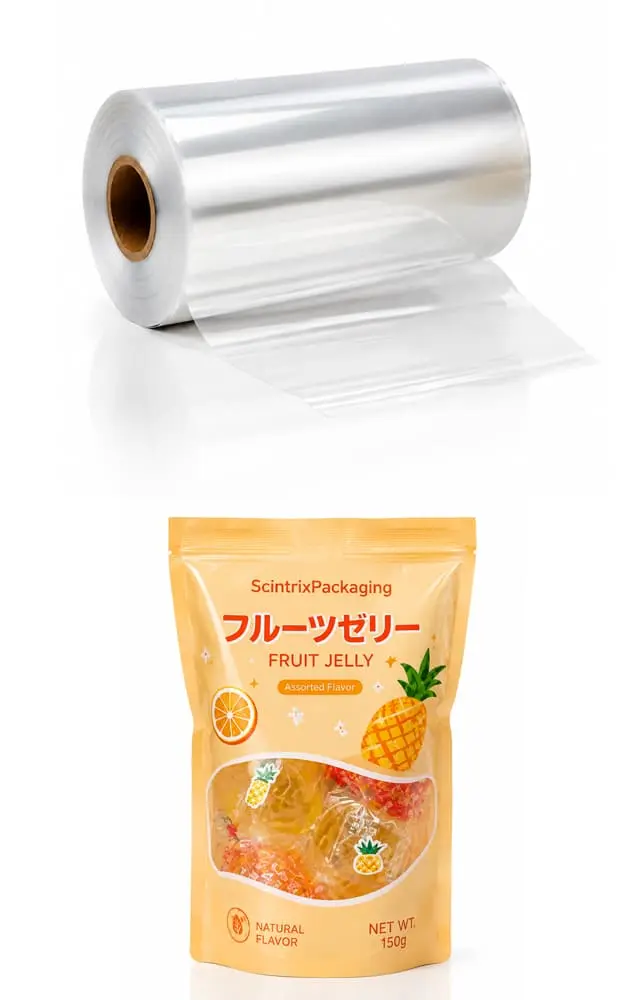

PET / PE Structure
A standard 2-ply lamination providing excellent clarity, mechanical strength, and reliable heat-sealing properties for non-sensitive goods.
Applications
- • Basic snacks & nuts
- • Dry pasta & grains
- • General hardware
Key Features
- • High print resolution
- • Puncture resistance
- • Cost-effective baseline

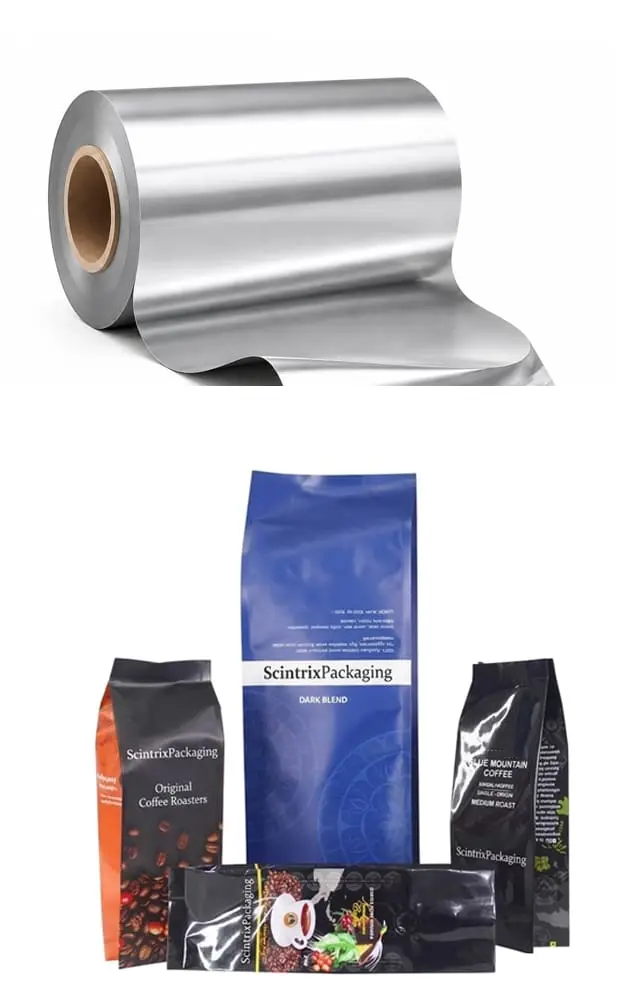

PET / VMPET / PE Structure
A 3-ply structure utilizing metallized polyester (VMPET) to significantly reduce oxygen and moisture transmission compared to clear films.
Applications
- • Coffee beans & grounds
- • Protein supplements
- • Dehydrated foods
Key Features
- • Strong moisture barrier
- • Good aroma retention
- • UV light protection

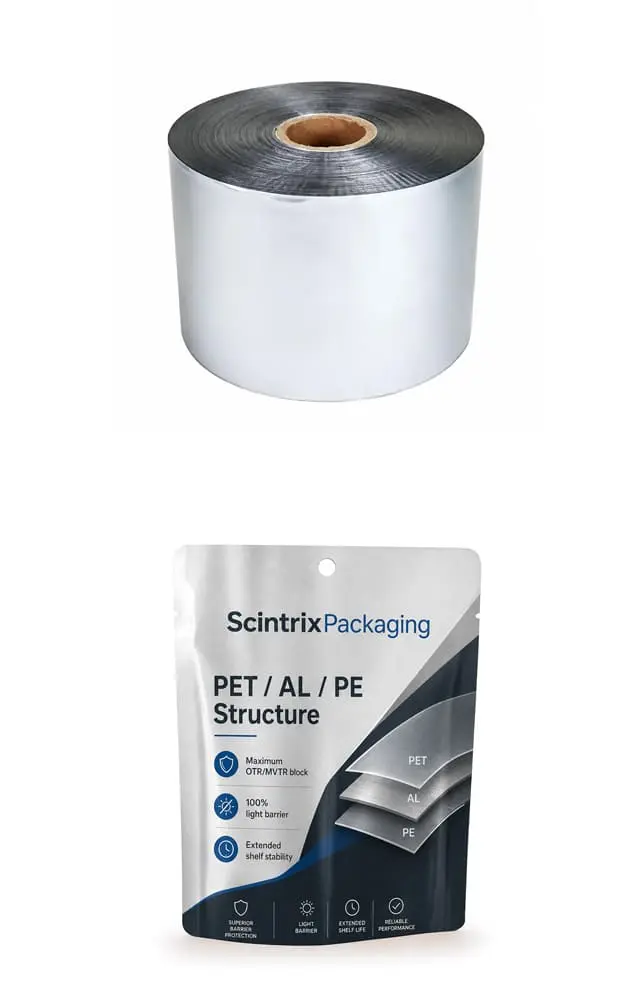

PET / AL / PE Structure
The ultimate high-barrier 3-ply or 4-ply structure. Pure aluminum foil (AL) provides a near-absolute barrier against oxygen, moisture, and light.
Applications
- • Premium sensitive foods
- • Long shelf-life organics
- • Pharmaceutical items
Key Features
- • Maximum OTR/MVTR block
- • 100% light barrier
- • Extended shelf stability

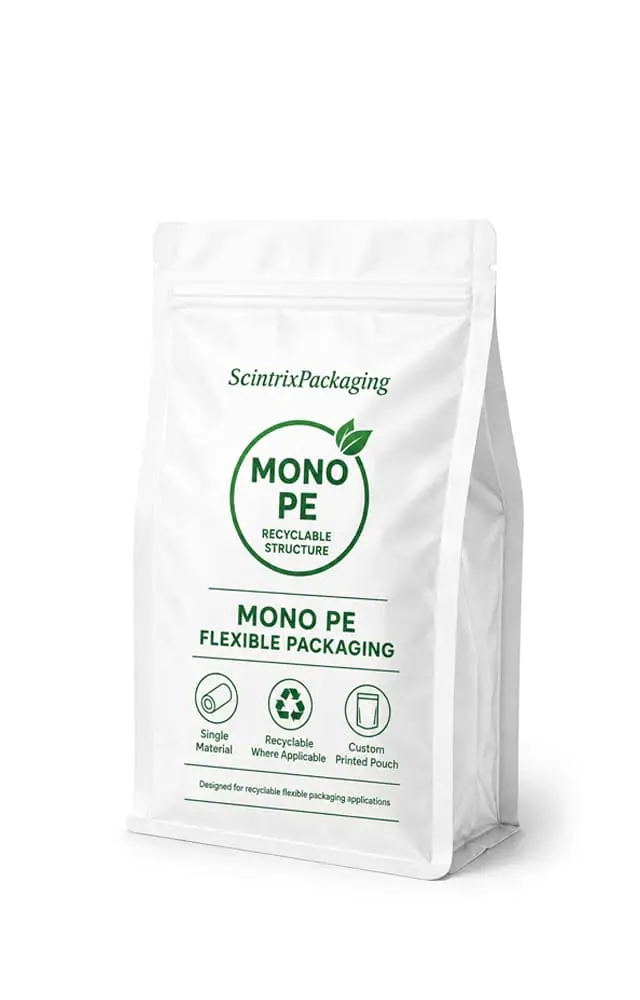

Mono PE Recyclable Structure
A mono-material structure utilizing Machine Direction Oriented (MDO) PE laminated to standard PE, designed for recyclability while maintaining printability.
Applications
- • Sustainable brand projects
- • Dry goods & apparel
- • Retail snack pouches
Key Features
- • Recyclable classification
- • Single polymer family
- • Meets eco-mandates
Packaging Materials by Application
Different industries face unique packaging stresses. We engineer material thicknesses and adhesive formulations to withstand specific environmental and physical demands.
Coffee Packaging Materials
Roasted coffee releases CO2 and degrades rapidly when exposed to oxygen. We utilize VMPET or AL foil layers combined with one-way degassing valve integration to ensure aroma protection and freshness retention over extended logistics cycles.
Pet Food Packaging Materials
Bulk pet food requires high structural integrity to prevent bottom-gusset blowout during palletization and drop impacts. We recommend heavy-gauge NY (Nylon) or thick PET laminations for superior puncture resistance and odor containment.
Supplement Packaging Materials
Fine powders (whey, collagen) are highly susceptible to clumping from humidity and can cause static issues during filling. We specify anti-static PE interior layers paired with high-barrier metalized films for absolute moisture resistance.
Snack Packaging Materials
Snacks require grease resistance and strong retail presentation. We often utilize clear window designs using PET/PE or matte-finish OPP structures to showcase the product while maintaining crispness and preventing oil migration through the film.
Beauty Packaging Materials
Cosmetics and personal care items demand premium tactile finishes (soft-touch, spot UV) and chemical resistance against active ingredients. We engineer structures that prevent ingredient scalping and maintain structural rigidity for premium shelf appeal.
Need Custom Solutions?
Leverage our 20 years of OEM/ODM factory expertise for your custom packaging boxes and bags. CE certified quality.
Online Message→

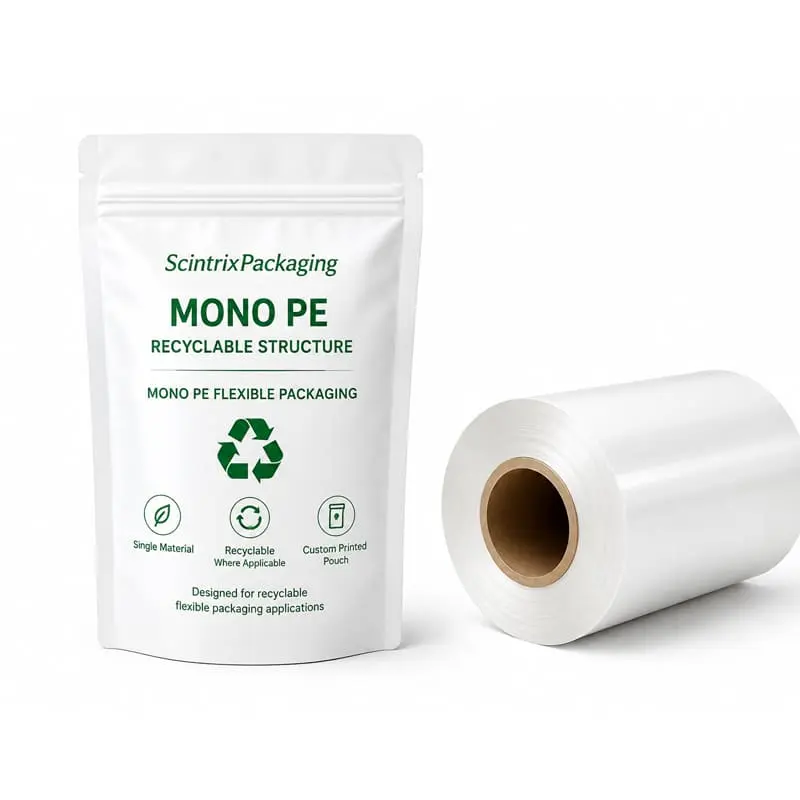

Recyclable Packaging Materials
Moving away from traditional mixed-plastic laminations requires careful engineering to maintain barrier properties. ScintrixPackaging supports brands with viable, verifiable recyclable packaging options where suitable for the product lifecycle.
-
Mono PE Structures Mono-material PE structures can support selected recyclable packaging projects where suitable for the application and local recycling conditions.
-
Kraft-Based Packaging Options Integrating natural kraft paper outer layers to reduce plastic volume, though barrier requirements often still necessitate a thin inner polymer lining.
-
No Unsupported Claims We provide clear data on material composition, avoiding generic "eco-friendly" greenwashing. We ensure your packaging meets actual structural realities.
Explore Packaging Formats We Manufacture
Select the ideal packaging structure tailored to your specific material and production requirements.
Stand Up Pouches
High-performance flexible packaging with customized material structures for food, coffee, pet food and supplements.
Explore Stand Up Pouches
Flat Bottom Bags
Premium packaging structures for coffee, pet food and large-volume products requiring stability and shelf presentation.
Explore Flat Bottom Bags
Roll Stock Film
Flexible packaging films designed for automatic filling and high-speed production.
Explore Roll Stock Film
Mylar Bags
High-barrier packaging solutions for products requiring moisture, oxygen and aroma protection.
Explore Mylar BagsHow We Help You Select the Right Material
A systematic B2B approach to ensure your custom pouches perform flawlessly from filling line to consumer pantry.
Product Review
We analyze your product state (liquid, powder, solid), weight, filling temperature, and required shelf-life.
Material Recommendation
Our engineers propose 1-2 specific laminated structures detailing thickness (microns) and barrier properties.
Material Testing & Sample Confirmation
We provide blank material samples for your facility to conduct physical drop tests and heat-seal compatibility trials.
Production
Upon approval, mass production begins with strict quality control ensuring consistent lamination bond strength.
Explore Our Packaging Solutions
Frequently Asked Questions
Technical insights on flexible packaging material selection.
What material is best for coffee packaging?
What packaging materials provide high barrier protection?
Can you recommend packaging materials for my product?
What recyclable packaging materials are available?
What information do you need to recommend a packaging material structure?
Need Help Choosing the Right Packaging Material?
Stop guessing about micron thickness and barrier layers. Connect with our packaging engineers to receive a structural recommendation and physical material samples tailored to your filling line and product chemistry.
